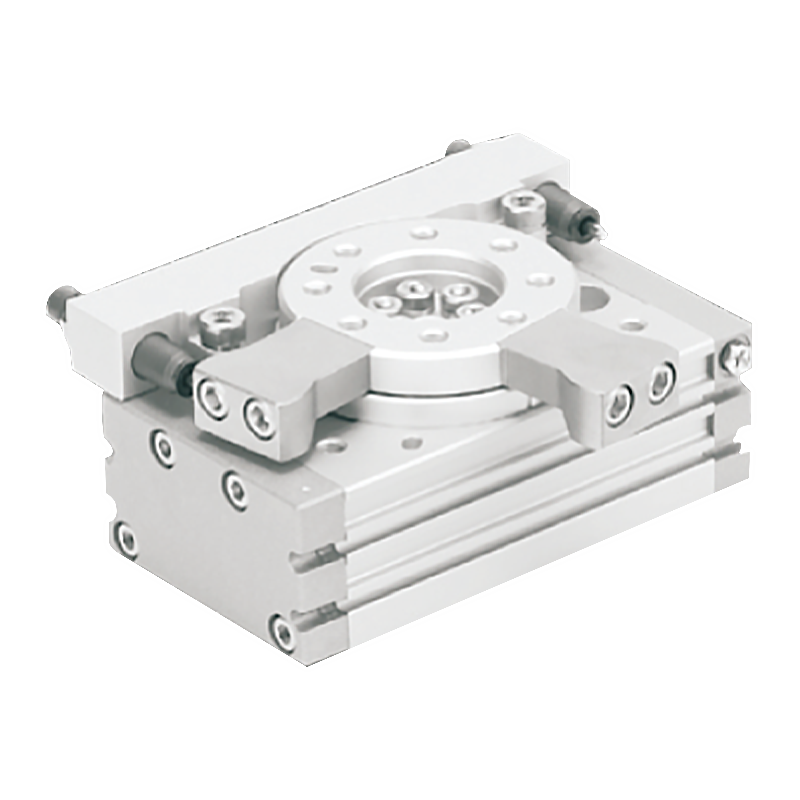

ROT Series Rotary Table Cylinder；
ROT Series Rotary Table Cylinder is a high-precision type, using high-precision ball bearings, so the vertical and horizontal precision can reach ±0.01mm. Rolling bearing design makes the cylinder complex ability, smooth swing, and accurate position. The cylinder standard Angle adjustment device, adjustment Angle range is large (0-190°), and the built-in magnetic ring, can be matched with a magnetic switch.
The rotation direction of the cylinder of the rotary table is related to the input air pressure. When it approaches the end of the rotation stroke, it will have a buffer on the external fixed support to absorb the rotation force. This part of the buffer can be adjusted according to the actual situation.
When using the ROT Series Rotary Table Cylinder, it is necessary to pay attention to the use of a cylinder pressure level of 150kpa-700kpa, and the use temperature range should be maintained at 0-50℃. If the customer needs the hydraulic buffer when buying the cylinder, we can provide a suitable model.
