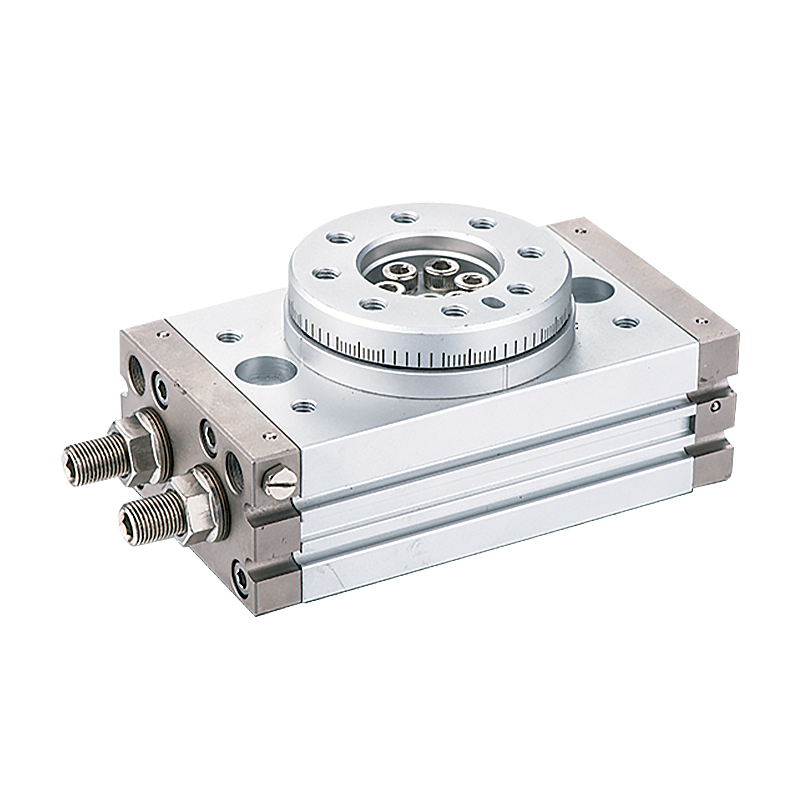

CRM Series Rotary Table Cylinder

CRM Series Rotary Table Cylinder

Rotary cylinder (also known as swing cylinder): The rotary cylinder is a pneumatic actuator that uses compressed air to drive the output shaft at a certain Angle for complex rotary motion. It is used for object turning, turning, sorting, clamping, valve opening and closing, and robot arm action.
The working principle of the rotary cylinder determines whether the vane-type rotary cylinder or the rack and pinion-type rotary cylinder can not achieve a non-stop rotation function. Because the working principle of the rotating cylinder is to use compressed air to drive the output shaft in a certain range of Angles for a reciprocating rotary pneumatic actuator.
Its working principle is to use air pressure to drive the piston to rotate Characteristics of the CRM Series rotary table cylinder
1. Rotary cylinder products are widely used in the industry
2, compact design, small installation space
3, position accuracy (flatness, Straight Angle, etc.) high, suitable for assembly manipulator and workpiece moving, etc.
4, conveying line, let the workpiece stop using.
