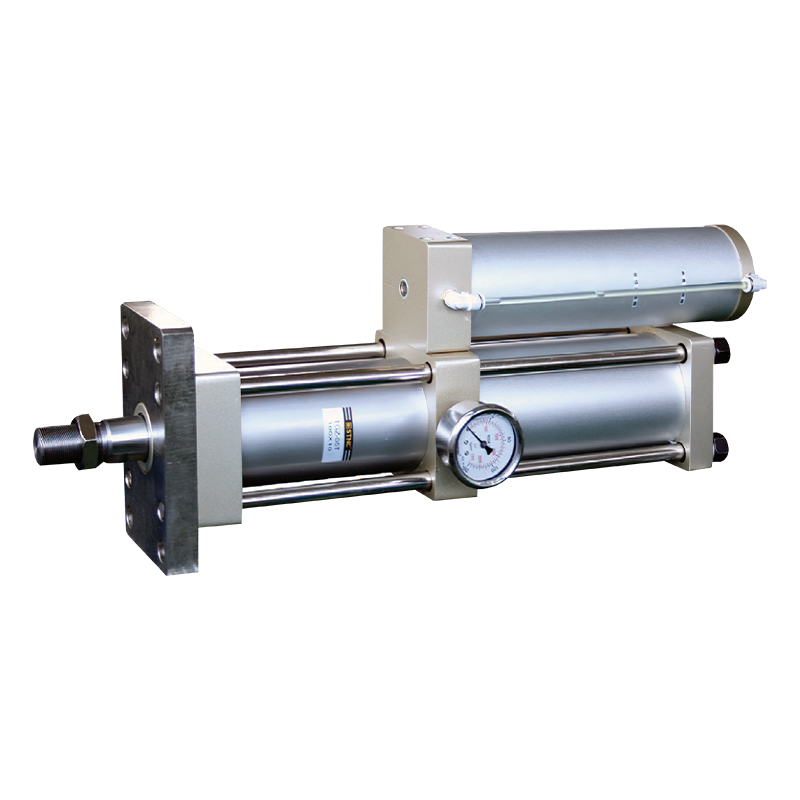

TGZ Series Booster Cylinder
TGZ series booster cylinder can convert low-pressure air into high-pressure oil, the output pressure ratio can reach about 25:1, mainly used in
Stamping, riveting, bending, cutting, embossing, stretching and pressure assembly, and other stamping operations. Use of installation: pneumatic-hydraulic booster cylinder, the first step into the air piston rod rapid downward pressure, the second step into the air booster, the third step into the air, booster rod back, the fourth step into the air, piston rod back... Pneumatic-hydraulic booster cylinder, the frequency is fast and slow with the time controller to adjust the control, but also and solenoid valve, and gas pipe aperture related. If you want to increase the frequency of the booster cylinder in the specific use, you can also connect the third and fourth steps, the air inlet pipe, and change it into a one-time air inlet. Pneumatic-hydraulic booster cylinder, pressure in the case of no overload, available air pressure to adjust the booster cylinder pressure. Due to the use of the installation situation all change, the specific situation please specific solutions.
The ordering code is TGZ (series standard reactive type) - 03T-100X5 (stroke X booster stroke) - FA (FA type: front cover fixed type/flange type)
i.e. TGZ-03T-100*5-FA
