Mini Air Cylinder

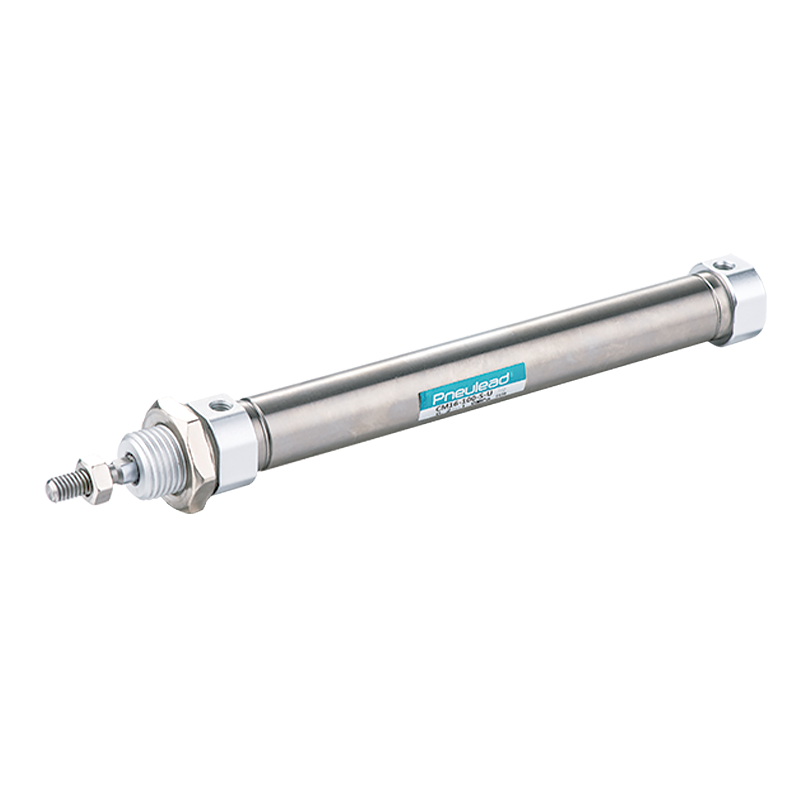

CM Series ISO Standard Mini Cylinder

CM Series ISO standard mini cylinder which implements ISO6432 standard. This Series of cylinders include a double-acting cylinder, double piston rod cylinder, adjustable stroke cylinder, spring return cylinder, and spring expansion cylinder. The medium of product circulation is limited to compressed air. The temperature of the compressed air should be in the range of -10℃ to 60℃. When the born size is 8-12mm, the minimum working pressure of a double-acting cylinder is 0.12Mpa, single acting cylinder is 0.2Mpa. And the way of the cushion is a rubber bumper. When the born size is 12-40, the minimum working pressure of a double-acting cylinder is 0.1Mpa, and the minimum working pressure of a single-acting is 0.2Mpa.
And the way of the cushion is a rubber bumper or air cushion.
When you need another stroke is available, contact us if any special requirements.

Obtain Inquiry Contact Us

Technical Specifications
