Home / Products / STNC / Pneumatic act elements / Thin cylinder / TGNW Series Double Outlet Ultra-thin Cylinder

TGNW Series Double Outlet Ultra-thin Cylinder OEM/ODM

TGNW Series Double Outlet Ultra-thin Cylinder
Thin cylinder

TGNW Series Double Outlet Ultra-thin Cylinder

TGNW Series Double Outlet Ultra-thin Cylinder

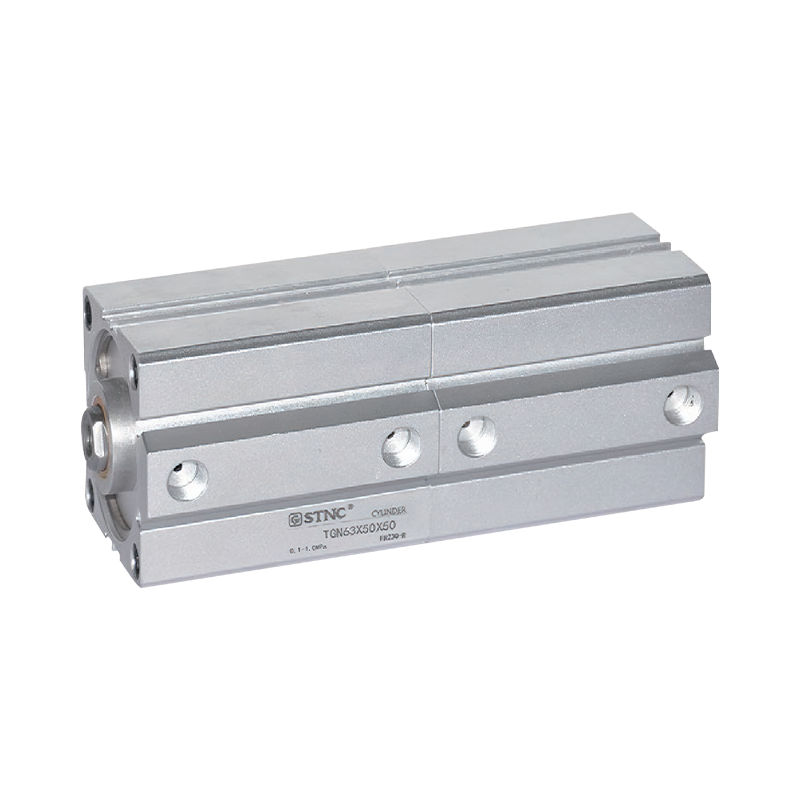

The TGNW series is a thin and lightweight cylinder that is only 1/2 to 1/3 the length of a normal cylinder while maintaining the accuracy and longevity of the product. Easy to install, using the buried installation method, no accessories are required to achieve space-saving requirements. Easy to maintain, easy to assemble and disassemble, easy to maintain. Magnetic switch: The assembly slots are reserved on the periphery of the body, making the magnetic switch extremely easy to install and adjust the position. The multi-position ultra-thin cylinder can be controlled by two cylinders in series with different valves, allowing the cylinder to have multiple operating positions throughout its travel range.
The ordering code is TGNW (series double outlet ultra-thin type) 20X30X10 (bore X stroke 1 X stroke 2) X (magnet code) - B (tooth type)
i.e. TGNW20*30*10-S-B
  • Technical Specifications
  • Feedback
