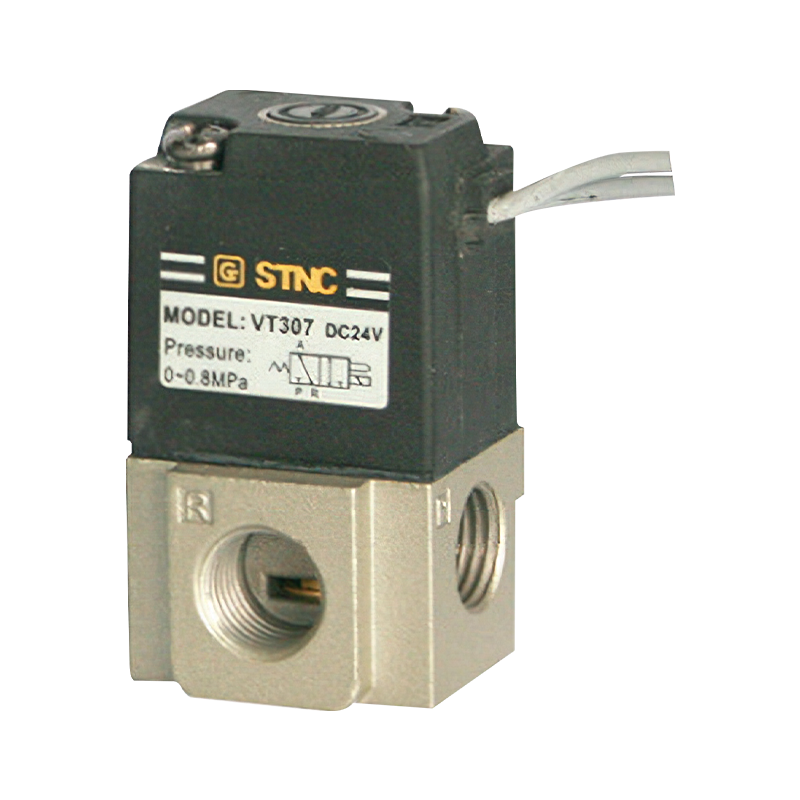

VT Series High-Frequency Valves
The VT series HF valves are air and inert gas. Its function is normally off or normally on general purpose. The medium temperature range is -5~60℃. Response time is as fast as 20 milliseconds, the maximum action frequency is 10 times/second, no need to add lubricant during the working process, with a dust protection structure. The pressure range is 0 to 0.8 MPa, bore size G1/4, manual operation, non-locking push-button type, shock/vibration resistance 15G/5G 40 to 1000 Hz.
Its ordering code is VT307 (high-frequency valve) V (vacuum type) - 01 AC220V (standard voltage)
i.e. VT307/VT307V
